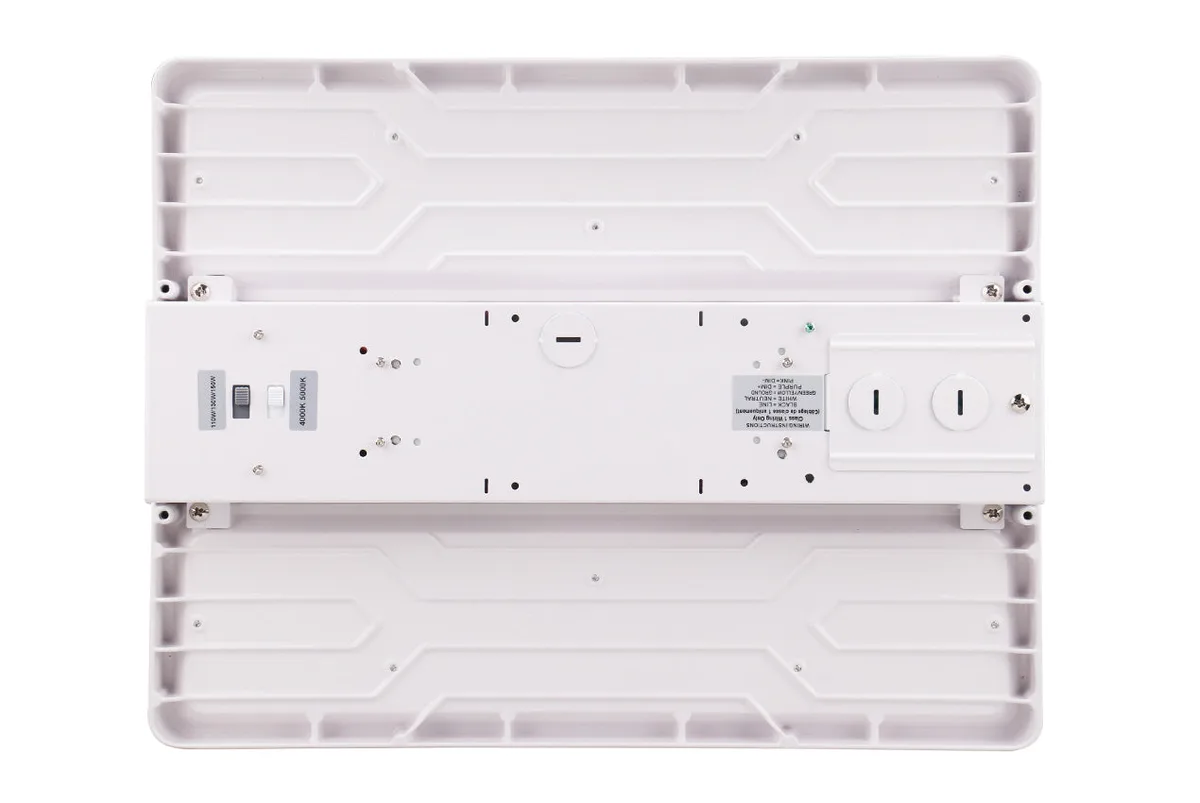

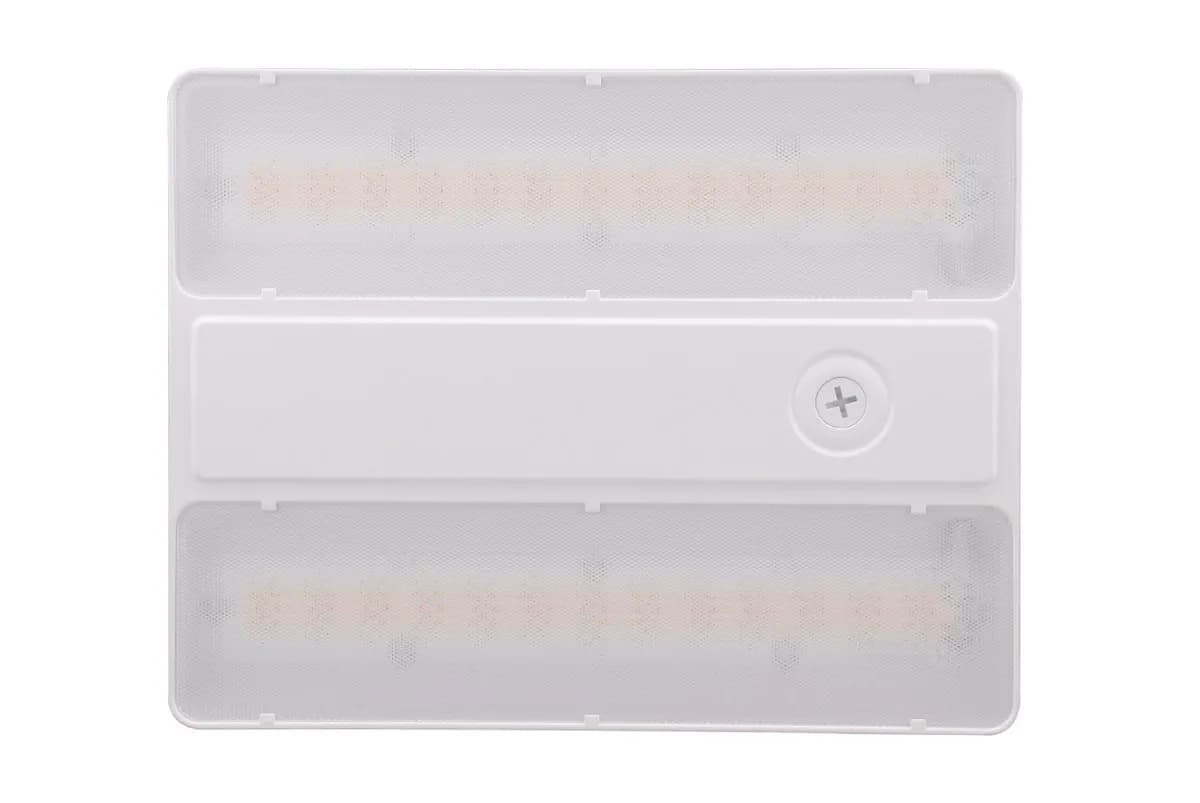

CSC LED LHB04-110W-3P-3CCT-UD-WH White Linear High Bay Wattage and CCT Selectable — CSCLED (110W, 70W)

CSC LED

CSC LED LHB04-110W-3P-3CCT-UD-WH White Linear High Bay Wattage and CCT Selectable

SKU LHB04-110W-3P-3CCT-UD

Request pricing

In stock

Online ordering is not available yet. Build your list and send it to us — we confirm pricing, stock and delivery by email, usually the same business day.

Specifications

Technical specifications for CSC LED LHB04-110W-3P-3CCT-UD-WH White Linear High Bay Wattage and CCT Selectable
Colour temperature3CCT, 3500K, 4000K, 5000K
CertificationcUL, DLC, DLC Premium
Dimming0-10V
FinishWhite
Location ratingIP65
Voltage347V
Wattage70W, 80W, 90W, 95W, 110W

Documentation

Spec sheet (PDF)series datasheet

Product details

VCAN stocks this -WH White Linear High Bay Wattage and CCT Selectable from CSC LED for industrial bays where mounting height rules out troffers.

Power is switchable across 110W, 95W, 90W, 80W and 70W, and colour temperature is selectable from 3500K, 4000K and 5000K. It runs on 347V with 0-10V dimming. The housing is sealed to IP65, and the fixture is DLC Premium and cUL certified. The finish is white.

Mounting height drives the choice: a round UFO throws a wide even pool suited to open floor, while an aimable or linear body suits aisles and racking. Match beam spread to rack layout rather than to floor area — a wide beam over narrow aisles lights the top of the racking and not the picking face.

Online ordering is not live yet, so add this to a quote request and we will price it and confirm stock for you. Quote by SKU LHB04-110W-3P-3CCT-UD. Compare this against the other LED Linear High Bay Light we carry.

Reviews

No reviews yet — used this on a job? Be the first.
